| Supply voltage | 100-240V AC 50/60 Hz |
|---|---|
| Rated current | 3A |
| Measuring range of the measuring unit | 0,01-400 mm³/ injection |
| Accuracy of measurement within the range 0,01-100mm³ | 1% |
| Accuracy of measurement within the range 0,01-400mm³ | 1,5% |
| Resolution capacity | 0,01 mm³/ injection |
| Overall dimensions HxWxD | 520 х 650 х 290 mm |
| Net weight (excluding fluids and installation kit) | 65 kg |
| Minimum volume of test liquid in the system tank | 20l |
| Flow of test liquid when creating a vacuum | 8 l/min |
| Maximum vacuum | -0.8 bar |
| Fluids to be used: Test liquid | Calibration oil ISO 4113 |
JET4-E.1 Hart
OS.39-085
Electronic Control Unit for Common Rail Fuel System

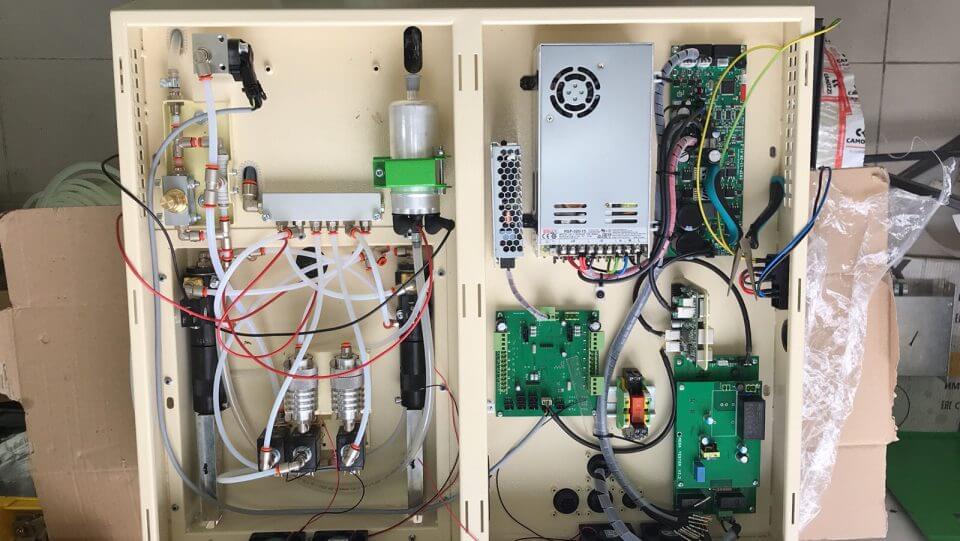

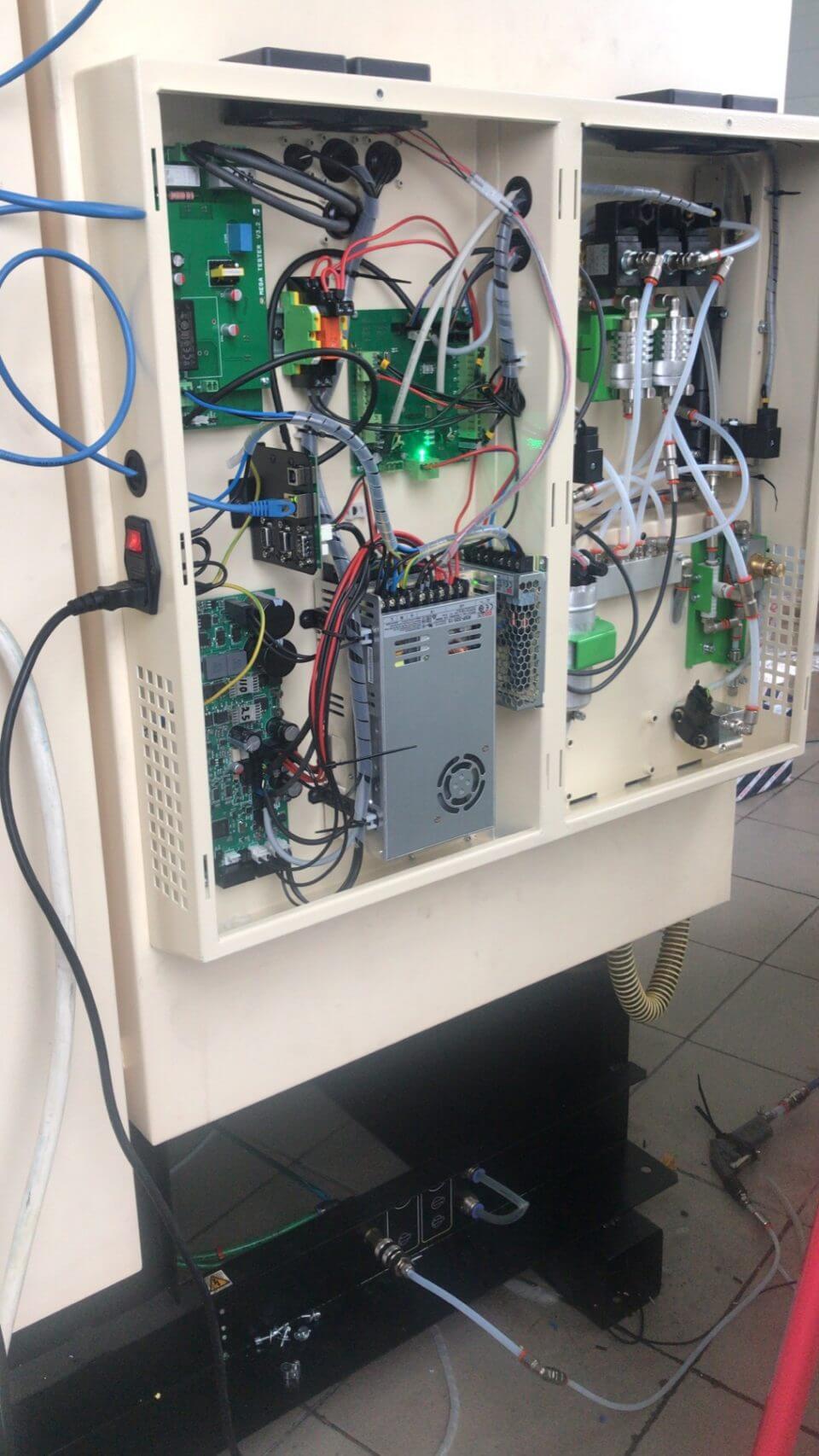

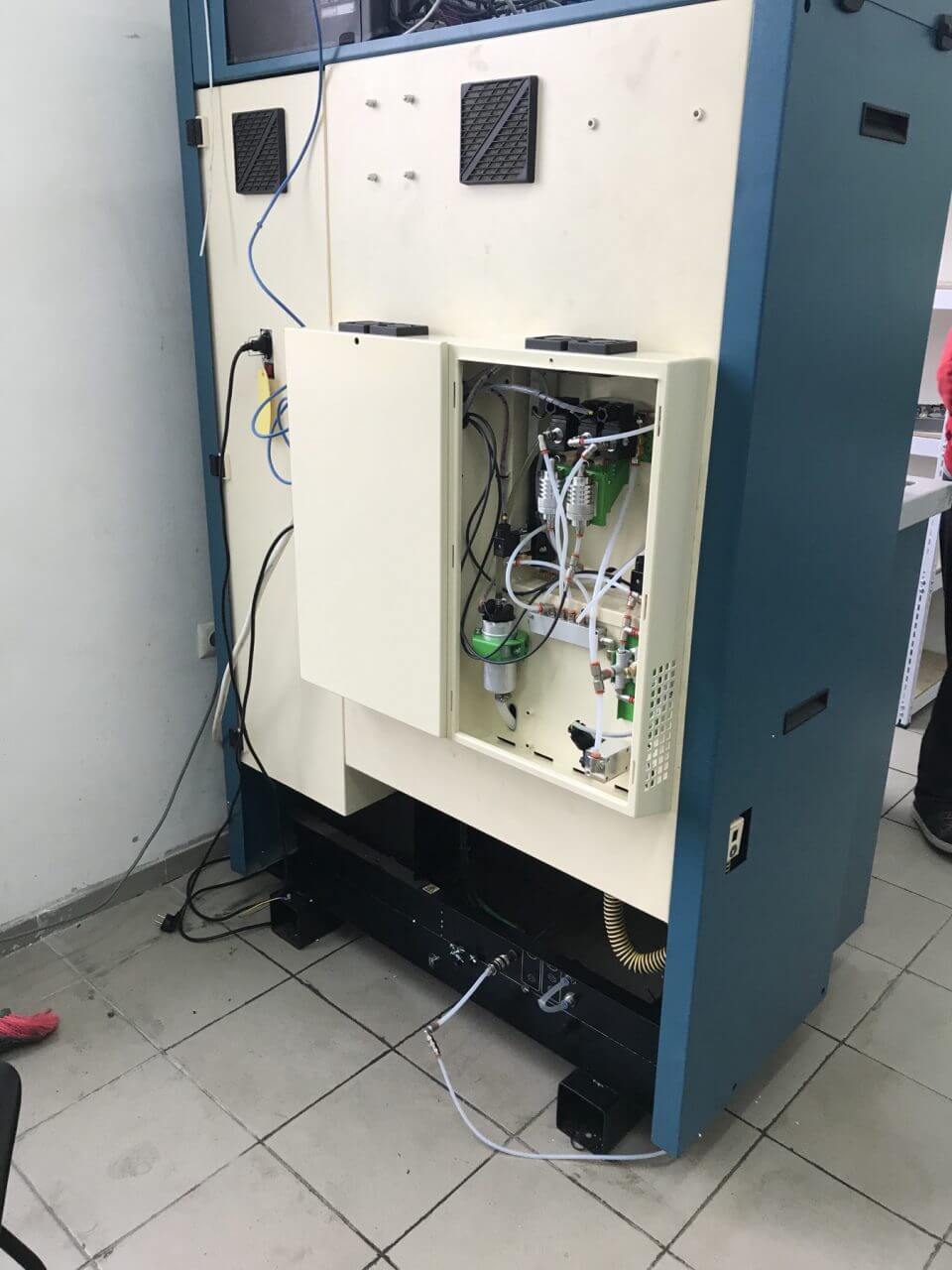

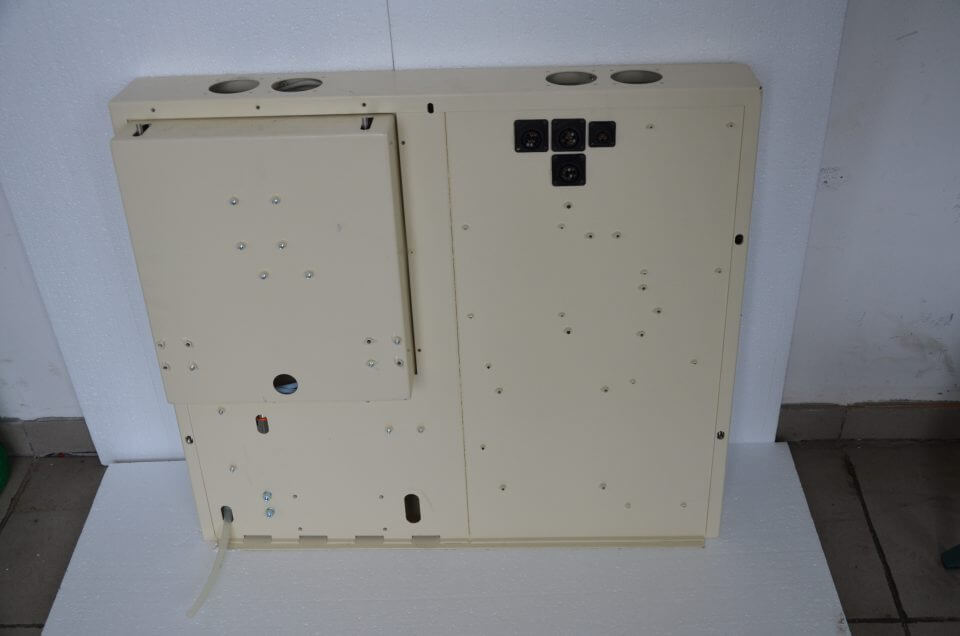

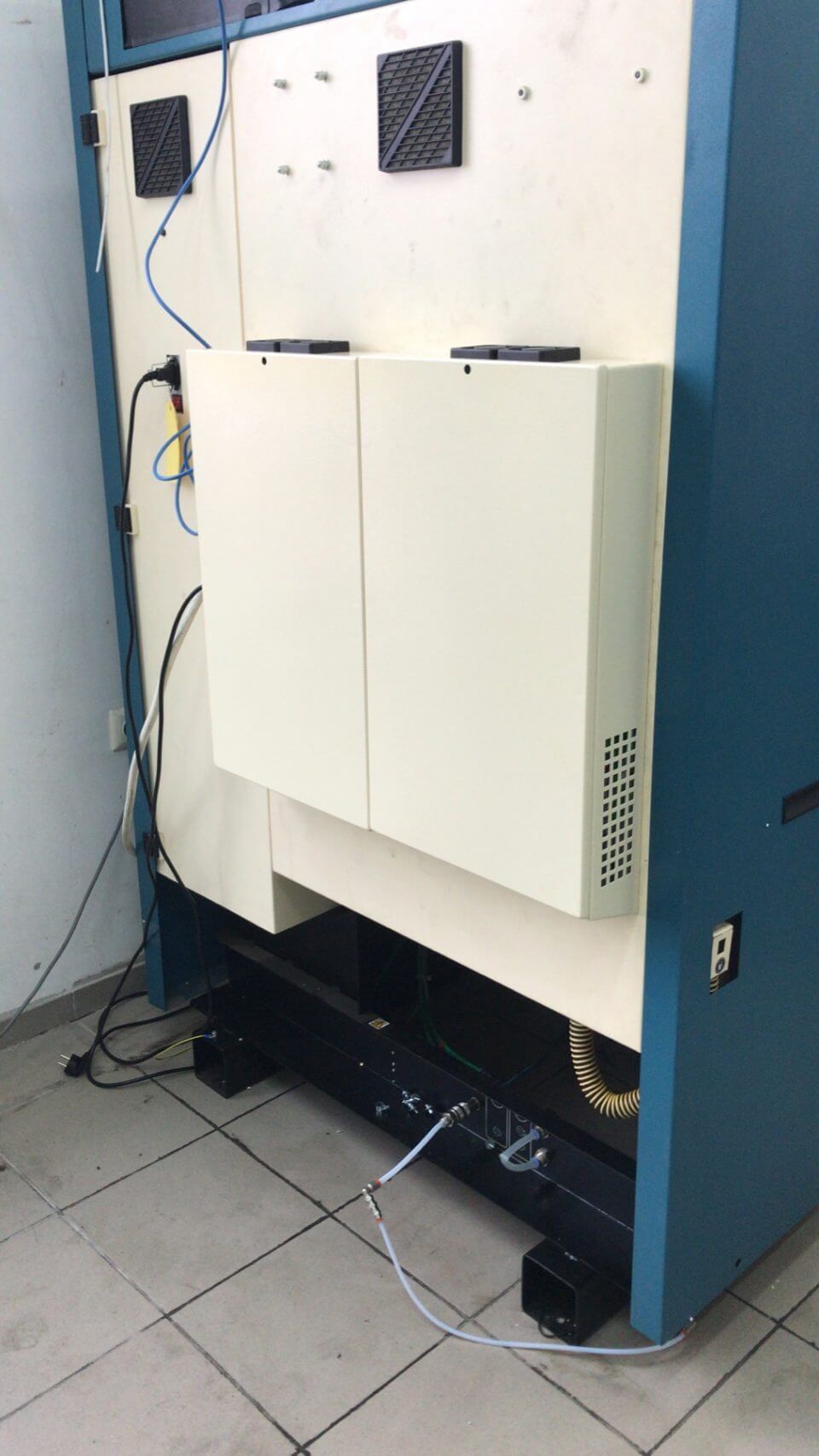

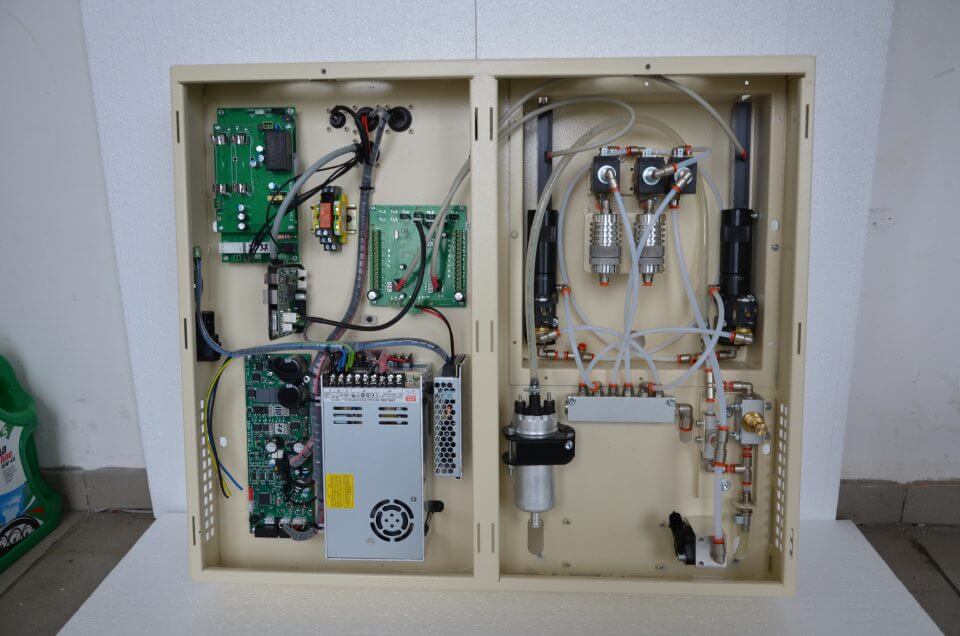

The measuring unit Jet4-E1-Hart is an electronic unit that controls the electrical elements of the Common Rail fuel system, measures the injector volume delivery and the injector return flow rate. It is used as part of the test bench equipment. This system was developed specifically for upgrading the old Hartridge CR PC test benches. The design is adapted to the shape of the original device. After retrofitting, the test stand has all the original functions as well as new ones and can be easily switched over.
Software ARM Diesel 8.87
Documentation
